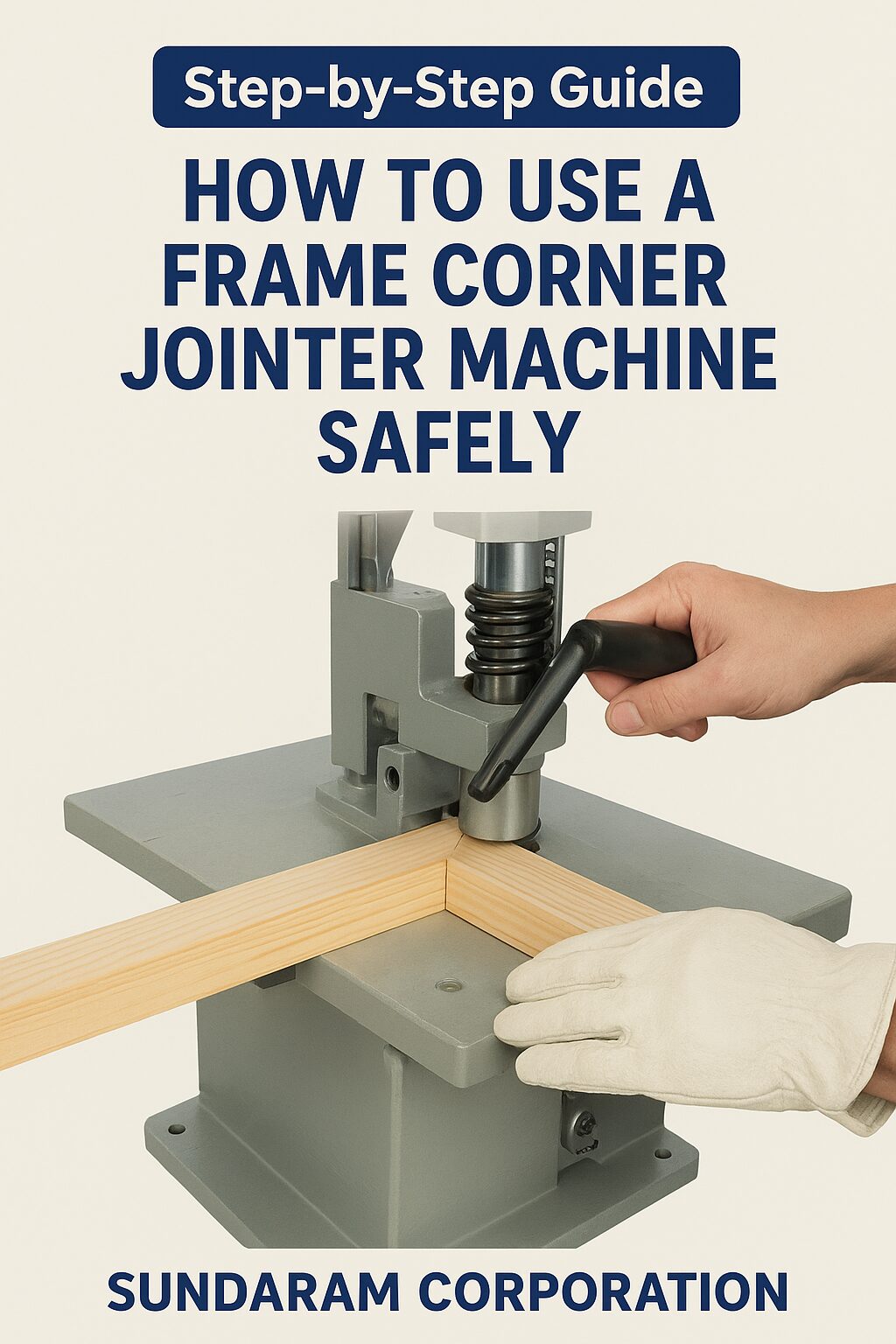

Step-by-Step Guide: How to Use a Frame Corner Jointer Machine Safely
If you work in the photo frame, wooden frame, aluminium frame, or furniture industry, a Frame Corner Jointer Machine is one of the most essential tools in your workshop. It gives your frames perfect corners, high strength, and professional finishing. But like any powerful industrial machine, using it safely and correctly is extremely important.
In this complete guide, Sundaram Corporation explains how to use a Frame Corner Jointer Machine step-by-step, along with important safety tips, best practices, and mistakes to avoid. Whether you’re a beginner or a professional craftsman, this guide will help you get perfect joints every time.
What Is a Frame Corner Jointer Machine?
A Frame Corner Jointer Machine (also called a V-nailer, underpinner, or frame jointer) is used to join two frame mouldings at a 45° angle to create strong and accurate corners. It presses “V-nails” or “U-nails” into the wood or MDF, locking the frame tightly without gaps.
These machines are widely used in:
- Photo frame manufacturing
- Wooden frame and mirror frame production
- Aluminium and PVC frame joining
- Art frame & gallery workshops
- Furniture decorative frame making
Why Safety Matters When Using a Jointer Machine
The machine applies high pressure and drives nails with strong force. Incorrect handling may cause:
- Finger injuries
- Misaligned corners
- Frame cracking
- Machine damage
- Productivity loss
A safe and proper method ensures long machine life and perfect output.
⭐ Step-by-Step Guide: How to Use a Frame Corner Jointer Machine Safely
Step 1: Prepare the Frame Pieces
Before you start:
- Cut both frame mouldings precisely at 45° angle using a mitre saw.
- Ensure both pieces are smooth and free from dust.
- Check the grain direction for wooden frames.
- Keep your nails/wedges ready (V-nails).
Pro Tip by Sundaram Corporation:
Always use sharp blades for cutting the frame sides. Dull blades create gaps in joints.
Step 2: Set Up the Machine
- Place the machine on a stable and clean workbench.
- Adjust the vertical and horizontal clamps depending on frame size.
- Select the correct V-nail size (commonly 5mm, 7mm, 10mm, 12mm, or 15mm).
- Insert the V-nails into the nailing head.
Safety Tip:
Ensure the machine is switched OFF while adjusting clamps.
Step 3: Position the Frame on the Machine
- Align both 45° frame edges together.
- Place the joining corner over the machine’s base plate.
- Ensure both pieces rest flat and even.
- Check alignment manually before pressing.
Avoid:
Using force to adjust the frame—this may cause surface dents.
Step 4: Apply Clamping Pressure
Most advanced jointer machines come with adjustable clamps:
- Vertical clamp holds the frame downward.
- Horizontal clamp tightens side movement.
Adjust clamps gently so they hold the frame firmly without damaging it.
Step 5: Press the Foot Pedal/Handle
Now the joining process begins:
- Hold the frame with one hand away from the nail head.
- Press the foot pedal or hand lever slowly and steadily.
- The V-nail penetrates the wood and locks both corners.
- Release pressure once fully inserted.
Important:
Never insert your fingers near the nail insertion area.
Step 6: Repeat for Multiple Nail Positions
For extra strength:
- Move the frame slightly forward or backward.
- Insert 2–3 V-nails at different depths.
This ensures the frame stays sturdy for years.
Step 7: Inspect the Final Joint
A good joint will have:
✔ No gaps
✔ Flush corners
✔ Smooth finishing
✔ Strong interlock
If gaps appear, repeat the process with proper alignment.
🛡 Essential Safety Tips When Operating a Frame Corner Jointer Machine
To keep yourself and your workshop safe, follow these rules:
✔ Keep hands away from the nailing head at all times
This is the most common mistake beginners make.
✔ Always wear safety gloves and goggles
Protects from accidental splinters and sharp mouldings.
✔ Use the correct nail size for the frame thickness
Wrong size may crack the moulding.
✔ Do not rush the joining process
Press slowly for best results.
✔ Keep machine clean and lubricated
Increases life and ensures smooth performance.
