Technical Specifications

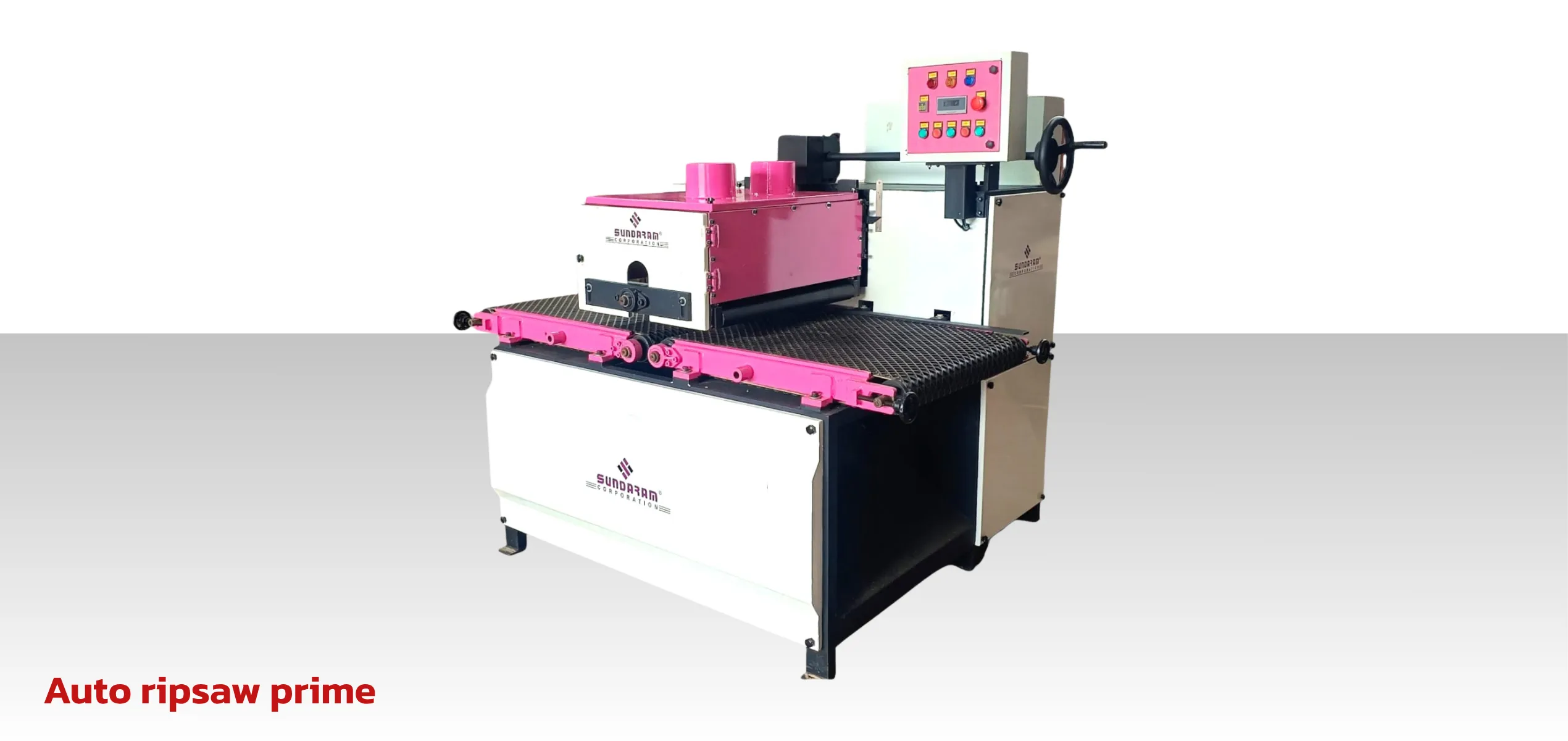

| PARTICULAR | TINY RIPSAW | RIPSAW | RIPSAW EXCEL | RIPSAW PLUS | RIPSAW PRIME | RIPSAW AUTO PLUS | RIPSAW AUTO PRIME |
|---|---|---|---|---|---|---|---|
| MAX WIDTH | 150 MM | 200 MM | 200 MM | 200 MM | 300 MM | 300 MM | 600 MM |
| MIN LENGTH | MIN 100 MM | MIN 300 MM | MIN 300 MM | MIN 300 MM | MIN 300 MM | MIN 350 MM | MIN 350 MM |
| THICKNESS | 10 MM TO 50 MM | 12 MM TO 75 MM | 12 MM TO 75 MM | 12 MM TO 100 MM | 12 MM TO 120 MM | 12 MM TO 75 MM | 12 MM TO 50 MM |
| POWER | - | - | - | 20 H.P. | 30 H.P. | 10 H.P. | 20 H.P. |
| FEEDING POWER | EXTRA | N/A | N/A | 2 H.P. | 2 H.P. | 1 H.P. | 2 H.P. |

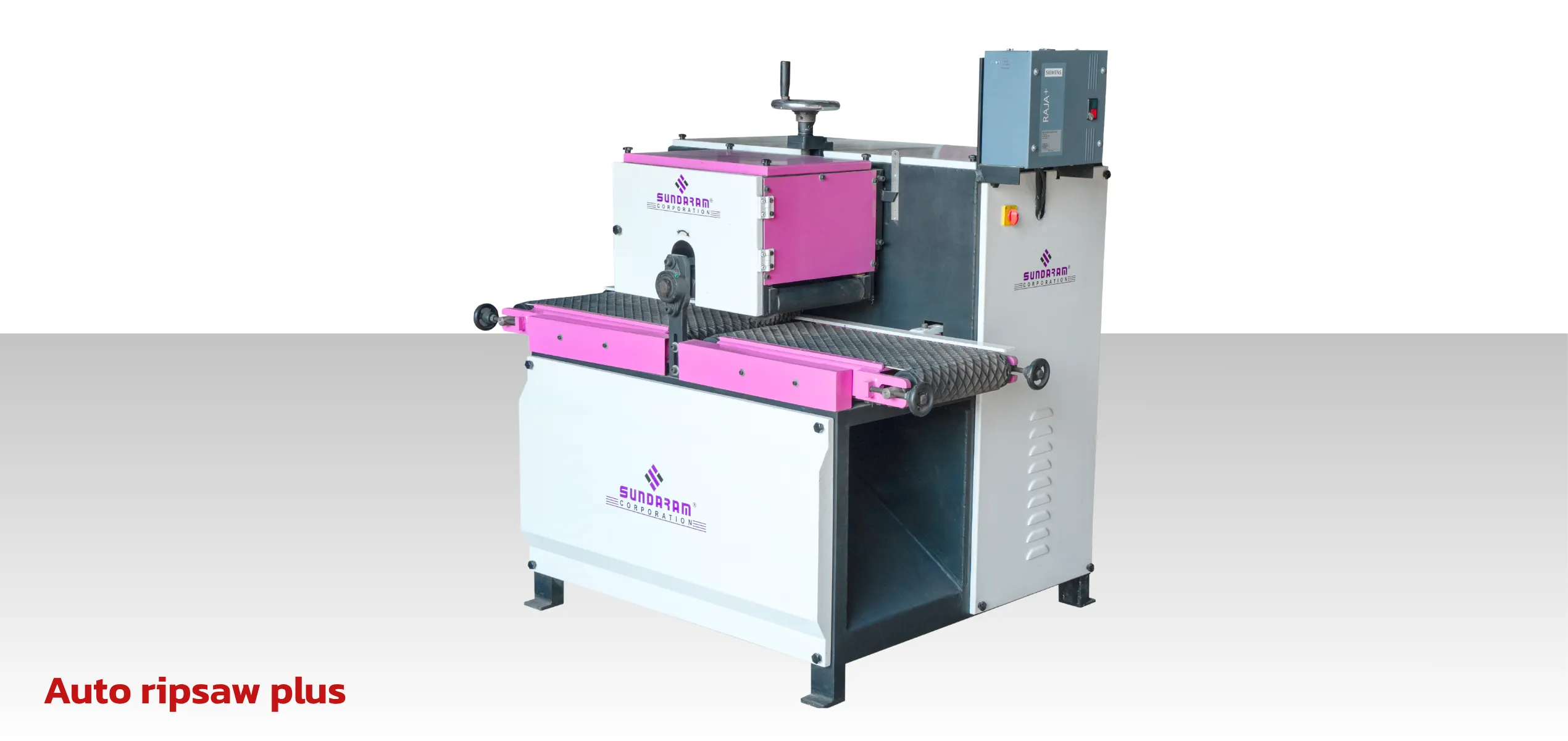

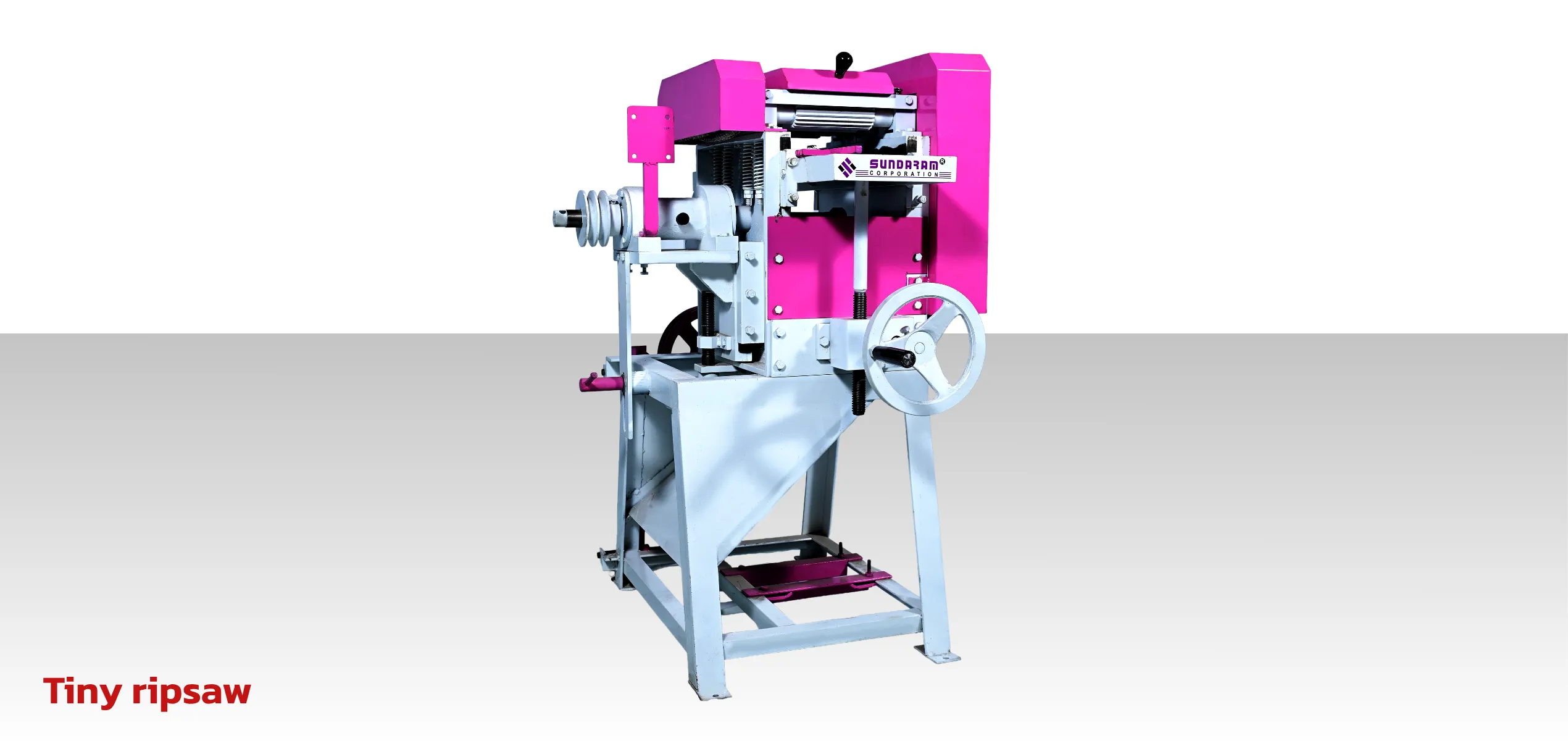

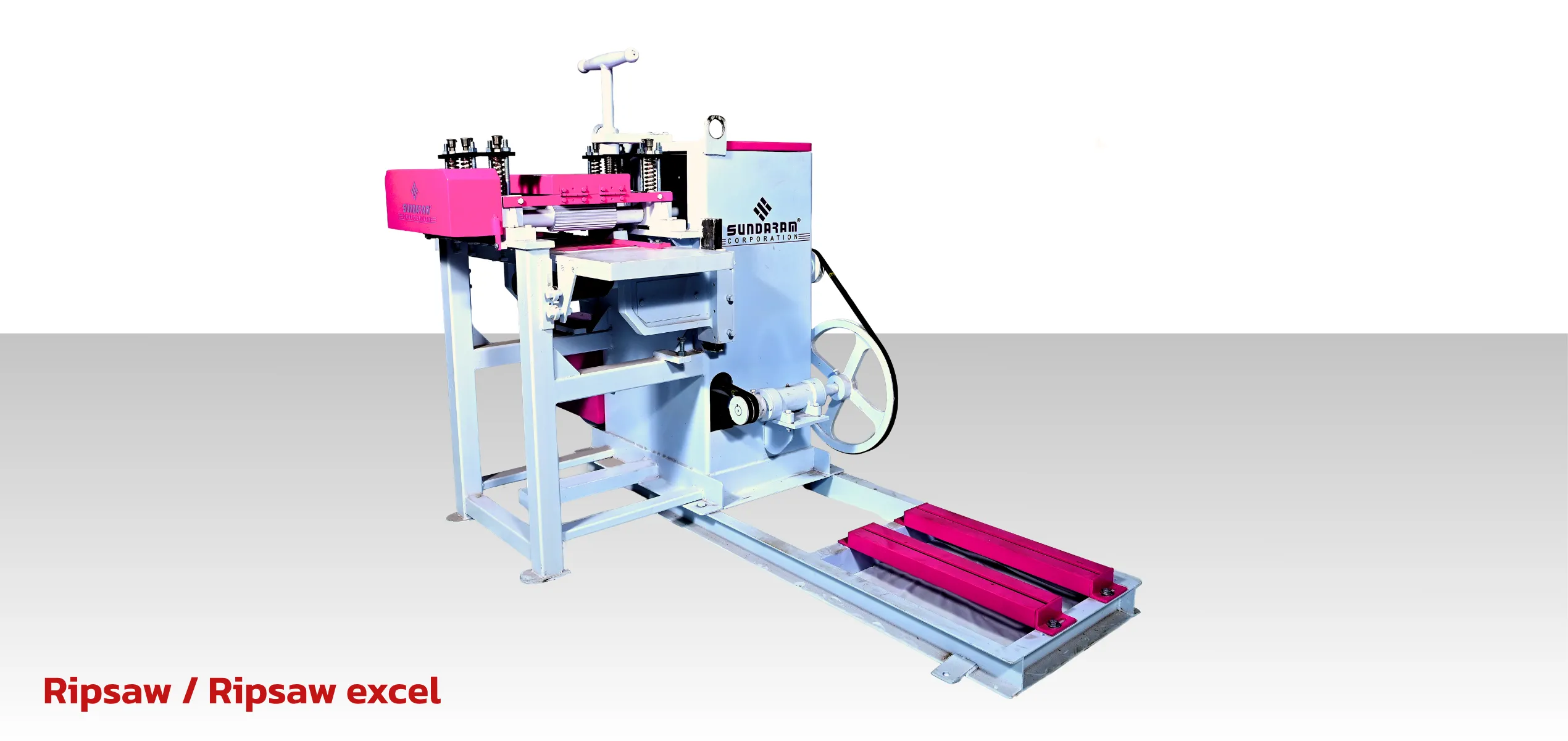

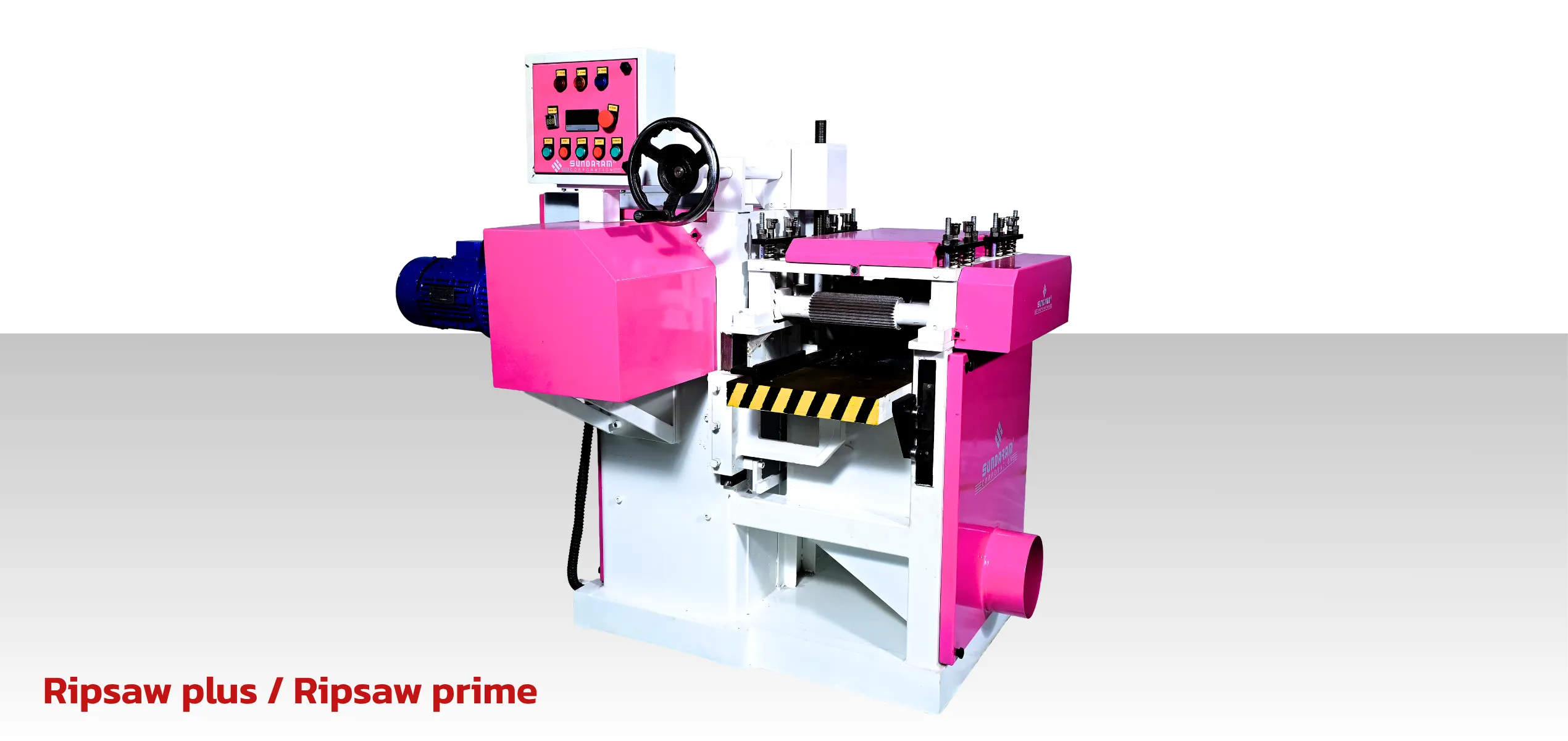

Multi Blade Ripsaw
The Multi Plank Ripsaw Machine is designed to cut multiple planks simultaneously in a single pass. Equipped with multiple high-speed circular blades mounted on a rigid steel frame, it ensures straight, uniform cuts with minimal material wastage. Adjustable blade spacing and precision guides allow customization according to plank width and thickness, making it perfect for industries focused on productivity and raw material optimization.
Key Technical Features
Versatile Manufacturing Solutions
Our Multi Blade Ripsaw is engineered for extreme versatility, providing high-precision solutions across a diverse range of industrial sectors from specialized manufacturing to large-scale production.
Core Applications

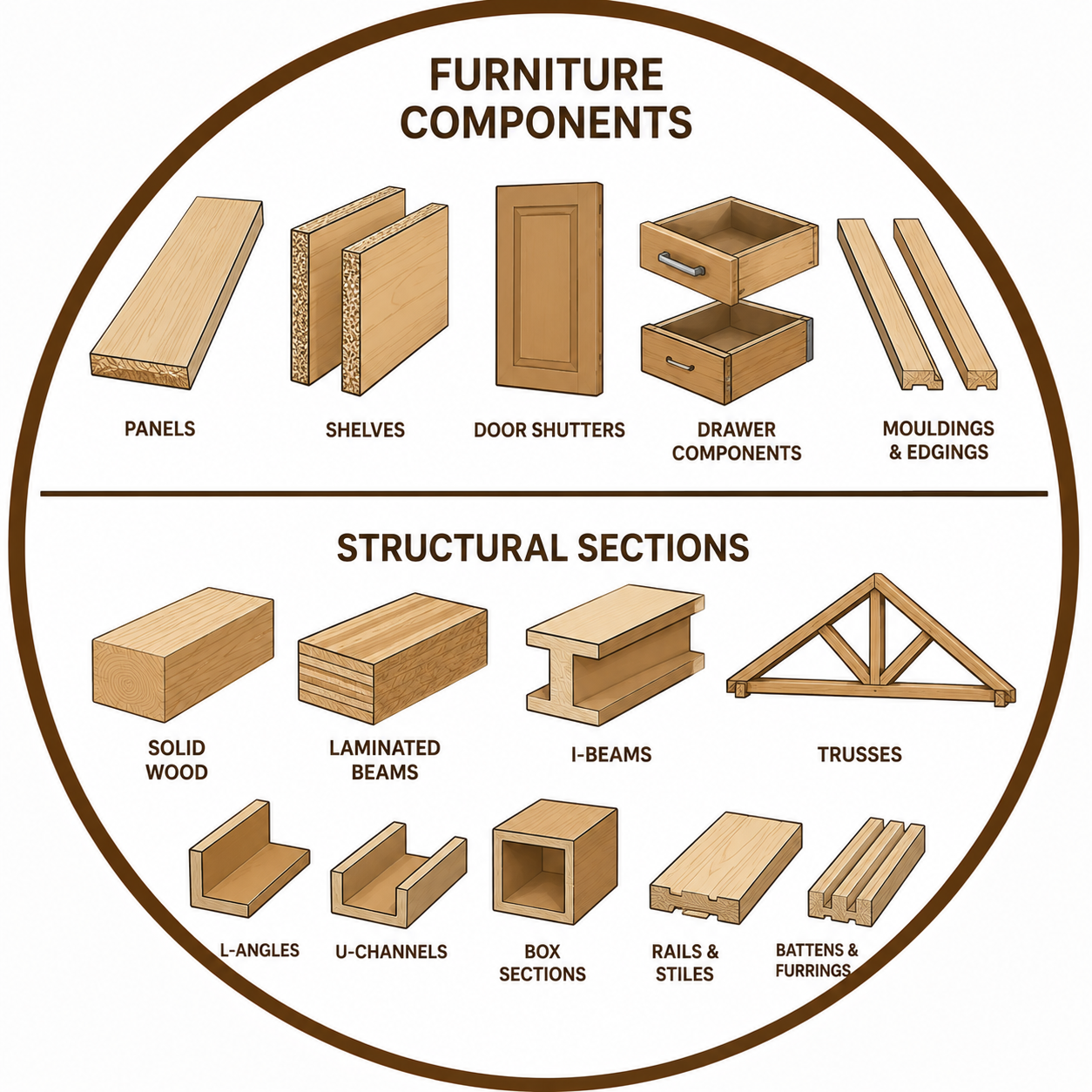

Optimized for diverse industrial uses, from furniture components to structural panels.

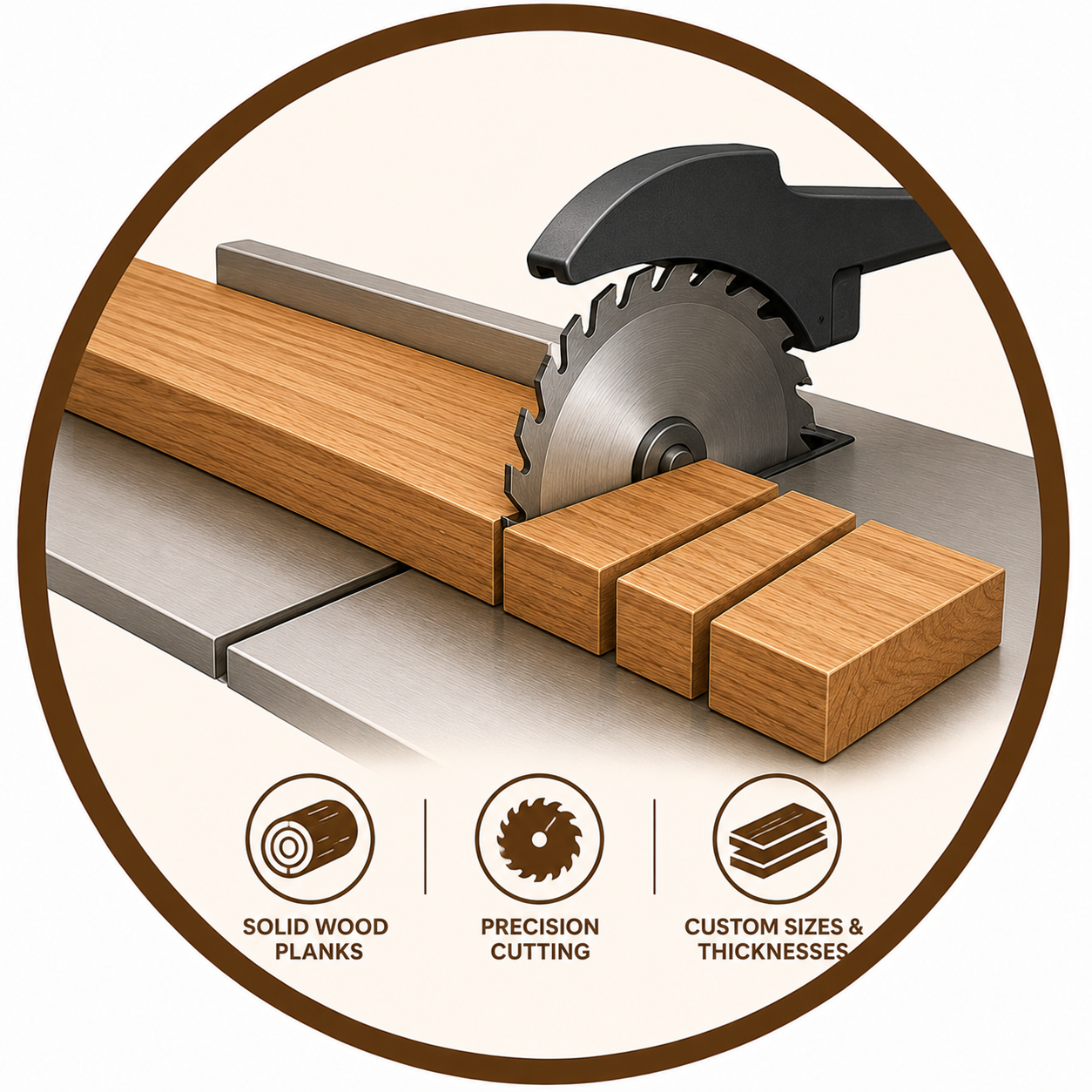

Cutting solid wood planks

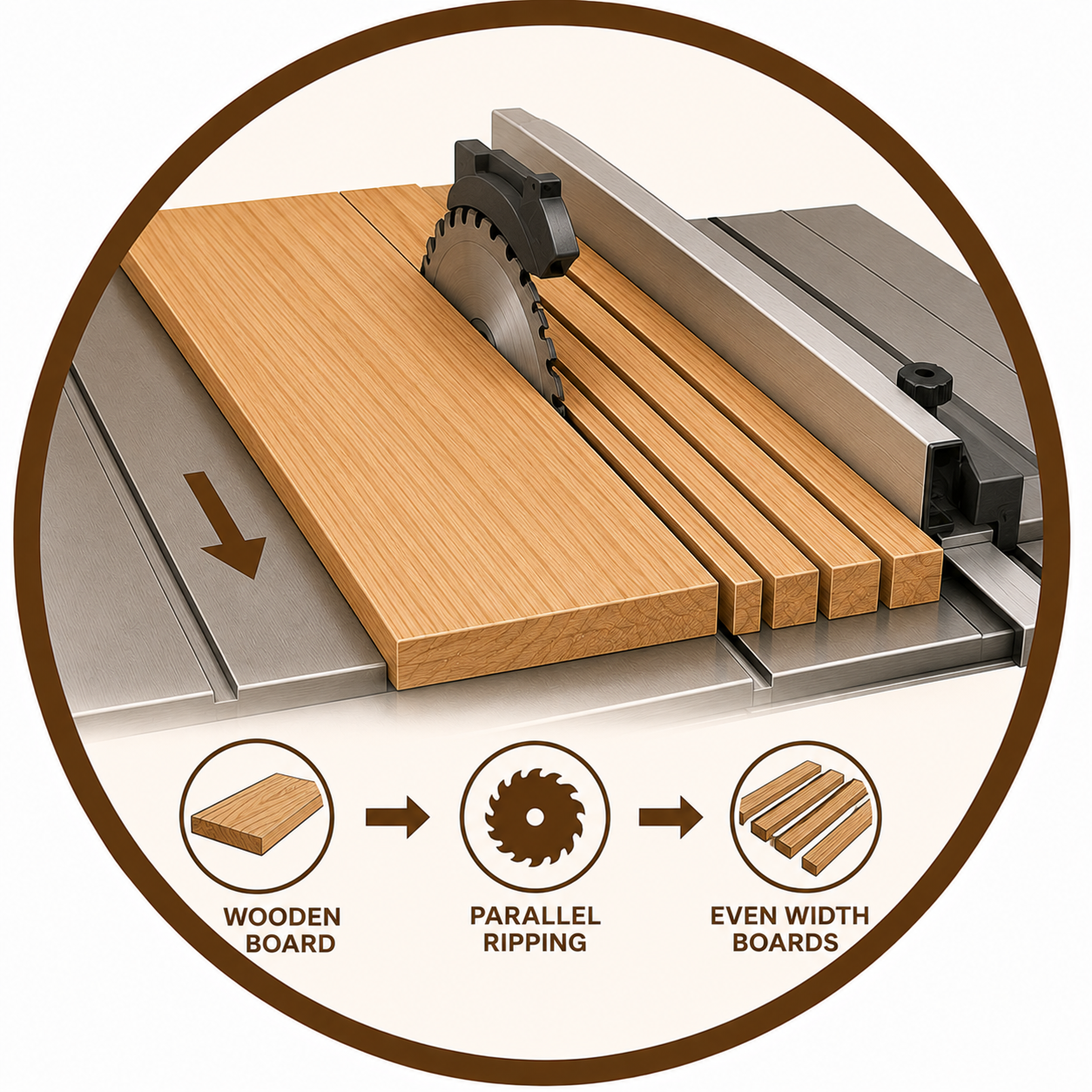

Parallel ripping of wooden boards
Processing blockboards
Manufacturing flush doors

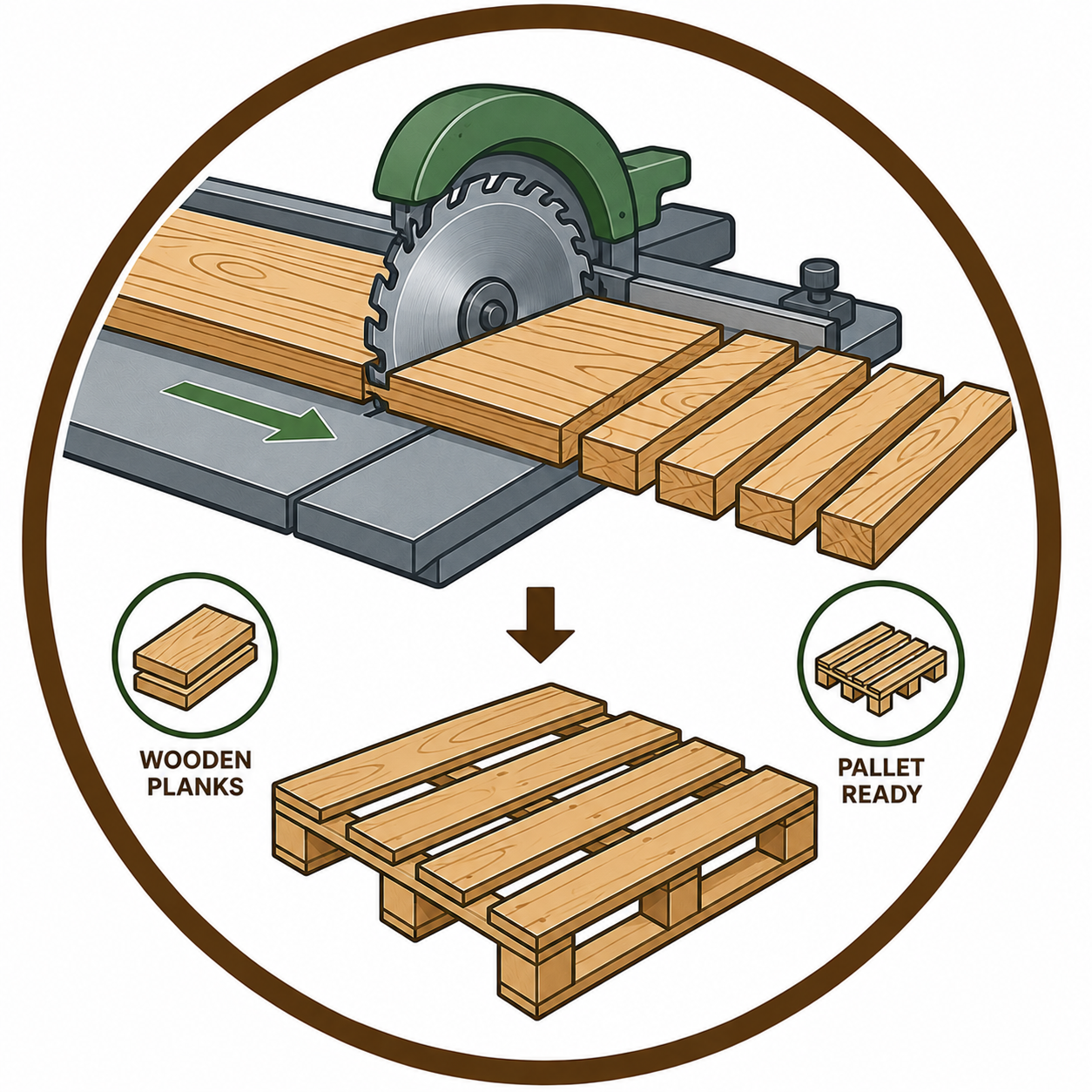

Cutting wooden planks for pallets
